Benefits and Features

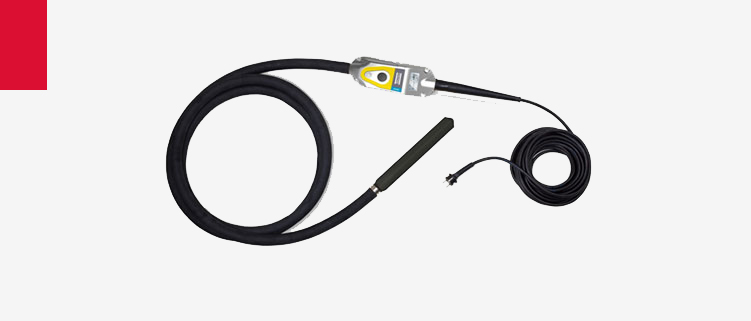

They’re light and maneuverable, easy to use and powered for the toughest jobs. Just plug it in and get to work. The electric motor-in-head design provides the poker head with outstanding performance, high power and stable speed. Rapid acceleration helps minimize air voids within the concrete and transport them to the surface.
Electronic Poker Features
- Plug and poke
- Work faster
- Built-in electronics
- Easy handling
- Vibration reduction
- Think safety
Technical Specifications
SMART range
| Primary voltage: 115V-1-50/60 Hz or 230V-1-50/60Hz | |||||
| Model | Smart 40 | Smart 48 | Smart 56 | Smart 65 | |
| Tube diameter | mm | 40 | 48 | 56 | 65 |
| Tube length | mm | 320 | 350 | 380 | 410 |
| Hose length | m | 5 | 5 | 5 | 5 |
| Cable length | m | 15 | 15 | 15 | 15 |
| Frequency | vpm | 12,000 | 12,000 | 12,000 | 12,000 |
| Converter dimensions LxWxH | mm | 300x100x80 | 300x100x80 | 300x100x80 | 300x100x80 |
| Vibration value | m/s² | 3.81 | 2.47 | 5.87 | 4.62 |
| Noise level | dB(A) | 75 | 80 | 83 | 88 |
| Part number 230V-1-50/60Hz | 4812 0521 50 | 4812 0521 51 | 4812 0521 52 | 4812 0521 53 |
SMART-E range
| Primary voltage: 115V-1-50/60 Hz or 230V-1-50/60Hz | |||||
| Model | Smart 28 E | Smart 40 E | Smart48 E | Smart 56 E | |
| Tube diameter | mm | 28/40 | 40 | 48 | 56 |
| Tube length | mm | 239/211 | 320 | 350 | 380 |
| Hose length | m | 0.5 | 0.5 | 0.5 | 0.5 |
| Cable length | m | 15 | 15 | 15 | 15 |
| Frequency | vpm | 12,000 | 12,000 | 12,000 | 12,000 |
| Converter dimensions LxWxH | mm | 300x100x80 | 300x100x80 | 300x100x80 | 300x100x80 |
| Vibration value | m/s² | 0.6 | 0.6 | 0.55 | 0.53 |
| Noise level | dB(A) | 85 | 75 | 80 | 83 |
| Part number 230V-1-50/60Hz | 4812 0521 61 | 4812 0521 62 | 4812 0521 63 | 4812 0521 64 |
