Benefits and Features
Apollo Curb Pavers ACP 40
The ACP 40 is versatile, compact curb-casting machine. It works on the extrusion principle and is driven by the force that results from ramming action. The machine is designed for laying curbs of 450 mm by 500 mm even with zero slump concrete. The ACP 40 is mounted on pneumatic tyres, and it utilises a low-noise, low-maintenance 16-HP petrol engine with electronic ignition.
Productivity
- Capacity to pave up to 450 mm height and 500 mm width
- Operating speed of 40 mtr./h
- Features a low-noise, low-maintenance 16 HP petrol engine with electronic ignition.
Efficiency
- Single-pass operation
- Ability to feed machine from transit mixer or self loading concrete mixer
- Quick-change ,mould design
- Automatic sensor for steering and height controls that follow reference line.
Apollo Curb Pavers ACP 120
The ACP 120 is integrated with a host of built-in features for enhanced productivity and a wide range of applications. It is equipped with a heavy-duty, field-proven engine, world-class hydraulic components and an intuitive control system. It is the ultimate machine in its class in meeting production and application needs.
Sensors
The ACP 120 is equipped with automatic electronic controls. The automatic steering control guides the front of the machine for precise alignment. The grade controller positions respective lift cylinders for precise grade. A slope control positions the rear lift cylinder to maintain precise slope. The automatic controls are also supplied with manual overrides and are easy to operate and adjust.
Hydrostatic Drive
A technically advanced, hydrostatic, direct-traction drive eliminates the need for a large number of mechanical drivetrain components, thereby ensuring lower maintenance costs and smoother operation.
Photos

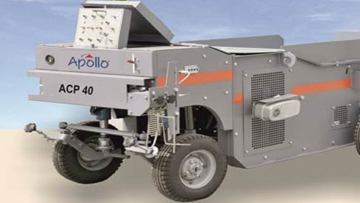

ACP 40

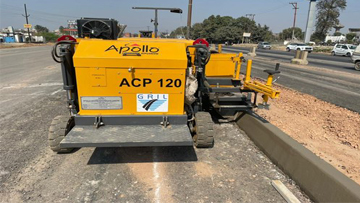

ACP 120
